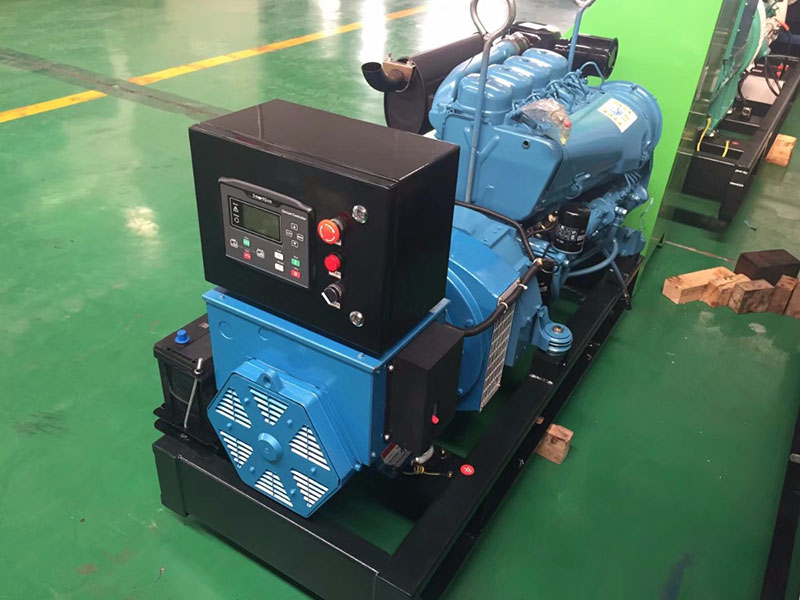

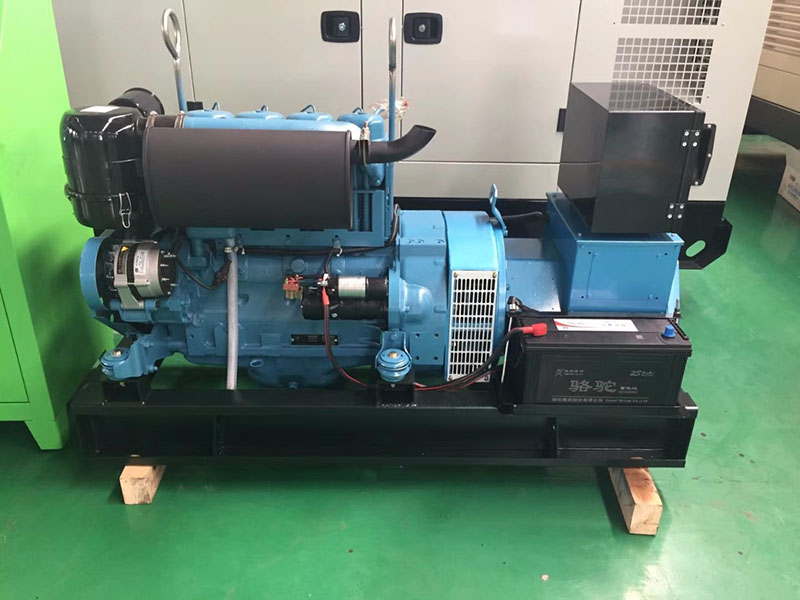

100KW風冷柴油發電機組
北內柴油機公司遵循著“高品質、北內造、全球共享”的企業營銷理念,利用德國道依茨公司912/913風冷機的先進技術和性能,先后研發了B/F2L912、BF6L913C等機型的柴油機,實現了產品全系列生產,形成柴油機功率從12kw~141kw。 風冷柴油發電機的特點: 結構設計緊湊、使用維護方便 不存在漏水、凍裂和形成水垢導致油機過熱而出現故障. 環境適應性強,可靠性高, 機組熱狀態穩定,受環境影響小,能在-40℃~+50℃溫度范圍內可靠地工作。適用于寒冷、酷熱、沙漠、森林、高原、和缺水地區。 工作平穩、噪音低、震動小、低溫啟動性能好 采用了優化設計的減震機體、先進的消聲和平衡技術,使噪聲和震動均比水冷機低。發動機內置空氣加熱器,使發動機低溫啟動性能卓越。 廢氣排放少,運行費用低 排煙度小于1個Bosch單位,油耗低。 "Beinei diesel engine company follow the" high quality, beinei made, global sharing "of the enterprise marketing idea, using the German way in accordance with the company 912/913 air cooling machine, advanced technology and performance, has developed the B/F2L912, BF6L913C type diesel engine, realized the full series of production, product form from 12 kw to 141 kw diesel engine power. Features of air-cooled diesel generators: Compact structure design, easy maintenance There is no leakage, frostbite and scale formation leading to oil engine overheating and failure. Strong environmental adaptability, high reliability, The thermal stable, affected by the environment is small, can in - 40 ℃ ~ + 50 ℃ temperature within the scope of work in a reliable way. Suitable for cold, hot, desert, forest, plateau, and water shortage areas. Stable operation, low noise, low vibration, low temperature start-up performance The optimized shock absorber, advanced noise abatement and balance technology are adopted to make the noise and vibration lower than the water cooler. The engine has a built-in air heater, which enables the engine to start at low temperature with excellent performance. Low exhaust emissions, low operating costs Smoke emission is less than 1 Bosch unit, low fuel consumption." |
機組型號 | 輸出功率KW | 輸出功率KVA | 電流A | 柴油機型號 | 缸數 | 缸徑*行程mm | 潤滑油容量L | 油耗g/kw.g | 機組外形尺寸L×W×H | 機組重量kg |
FM12KW | 12 | 15 | 21.6 | F2L912 | 2 | 100*120 | 6 | 200 | 1400*700*1000 | 460 |
FM20KW | 20 | 25 | 36 | F3L912 | 3 | 100*120 | 6 | 200 | 1500*700*1000 | 520 |
FM30KW | 30 | 37.5 | 54 | F4L912 | 4 | 100*120 | 10 | 200 | 1500*700*1100 | 600 |
FM30KW | 30 | 37.5 | 54 | F4L913 | 4 | 100*120 | 10 | 200 | 1500*700*1200 | 640 |
FM40KW | 40 | 50 | 72 | F4L912T | 4 | 100*120 | 10 | 200 | 1500*700*1350 | 680 |
FM45KW | 45 | 56.25 | 81 | F6L912 | 6 | 100*120 | 15 | 205 | 2000*900*1400 | 800 |
FM50KW | 50 | 62.5 | 90 | F6L913 | 6 | 102*125 | 15 | 205 | 2000*900*1400 | 850 |
FM55KW | 55 | 68.75 | 99 | F6L912T | 6 | 100*120 | 15 | 205 | 2000*900*1400 | 900 |
FM50KW | 50 | 62.5 | 90 | BF4L913電調 | 4 | 102*125 | 12 | 205 | 2200*1000*1550 | 720 |
FM75KW | 75 | 93.75 | 135 | BF6L913電調 | 6 | 102*125 | 18 | 205 | 2200*1000*1600 | 1050 |
FM100KW | 100 | 125 | 180 | BF6L913C電調 | 6 | 102*125 | 18 | 205 | 2200*1000*1650 | 1150 |
備注:風冷柴油機為空氣直接強迫冷卻,無水泵、水管、水箱等部件,缸體和缸蓋為分體式,無冷卻水夾層。結構簡單、體積小、重量輕。 |
1.以上技術參數轉速為1500RPM,頻率50HZ,額定電壓400/230V,功率因數0.8,接線方式為三相四線。 2.發電機可以根據客戶需求,選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考,如有更改恕不另行通知。 | ||||||||||
標準配置 Standard equipment: 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池 電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換 開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
