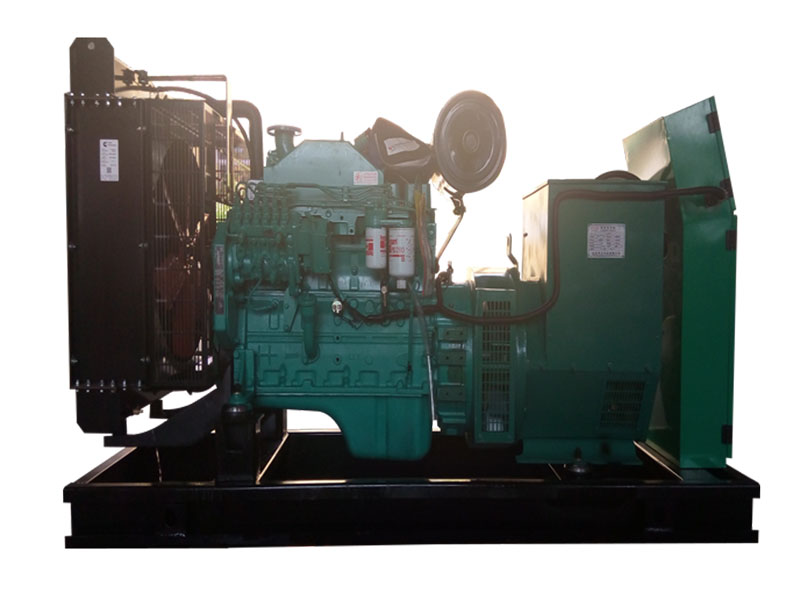

80KW東風康明斯柴油發電機組
康明斯系列柴油發電機組是采用中美合資B/N/K系列發動機為引擎,其可靠性、經濟性一直以來贏得部隊、工程、工礦企業的信賴??得魉构緞?chuàng)建于1919年2月,總部設在美國印第安納州哥倫布市,康明斯在全球190多個國家和地區,500多加分銷機構,服務網點遍布世界各地,為客戶提供了可以信賴的服務保障。作為中國發動機行業最大的外國投資商,康明斯在中國擁有東風康明斯發動機有限公司(生產B/C/L系列)和重慶康明斯發動機有限公司(生產M/N/K系列)等制造企業。 Cummins diesel generator set is a sino-us joint B/N/K series engine, whose reliability and economy have always won the trust of the army, engineering and mining enterprises. Cummins company was established in February 1919, is headquartered in Columbus, indiana (USA), cummins in more than 190 countries and regions, 500 more distributors, service outlets all over the world, providing customers with reliable service. As engine industry's biggest foreign investors in China, cummins in China with dongfeng cummins engine co., LTD (produce B/C/L series) and chongqing cummins engine co., LTD. (M/N/K series), and other manufacturing enterprises. |
機組型號 | 輸出功率KW | 輸出功率KVA | 電流A | 柴油機型號 | 缸數 | 缸徑*行程mm | 潤滑油容量L | 油耗g/kw.g | 機組外形尺寸L×W×H | 機組重量kg |
FM20GF | 20 | 25 | 36 | 4B3.9-G2 | 4 | 102*120 | 11 | 208 | 1560*710*1080 | 700 |
FM24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 11 | 208 | 1620*710*1100 | 710 |
FM30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 11 | 208 | 1700*710*1110 | 800 |
FM40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 11 | 210 | 1800*800*1200 | 920 |
FM50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 11 | 210 | 1800*800*1200 | 950 |
FM64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 11 | 210 | 1850*800*1200 | 1000 |
FM80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 16 | 210 | 2200*800*1200 | 1250 |
FM100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 20 | 207 | 2200*800*1200 | 1300 |
FM120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 24 | 207 | 2250*800*1200 | 1350 |
FM132GF | 132 | 165 | 237.5 | 6BTAA5.9-G12 | 6 | 102*120 | 24 | 207 | 2300*820*1330 | 1350 |
FM150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 24 | 207 | 2300*820*1300 | 1600 |
FM180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 24 | 207 | 2500*1050*1480 | 1700 |
FM200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 28 | 207 | 2500*1050*1500 | 2000 |
FM220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 28 | 203 | 2500*1050*1500 | 2000 |
FM320GF | 320 | 400 | 576 | 6ZTAA13-G3 | 6 | 114*145 | 28 | 202 | 3200*1360*1800 | 3000 |
FM400GF | 400 | 500 | 720 | 6ZTAA13-G4 | 6 | 114*145 | 28 | 202 | 3200*1360*1800 | 3000 |
FM400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 28 | 201 | 3300*1360*1800 | 3100 |
FM450GF | 450 | 562.5 | 810 | QSZ13-G3 | 6 | 130*163 | 28 | 201 | 3300*1360*1800 | 3100 |
1.以上技術參數轉速為1500RPM,頻率50HZ,額定電壓400/230V,功率因數0.8,接線方式為三相四線。 2.發電機可以根據客戶需求,選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考,如有更改恕不另行通知。 | ||||||||||
標準配置 Standard equipment: 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池 電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換 開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
