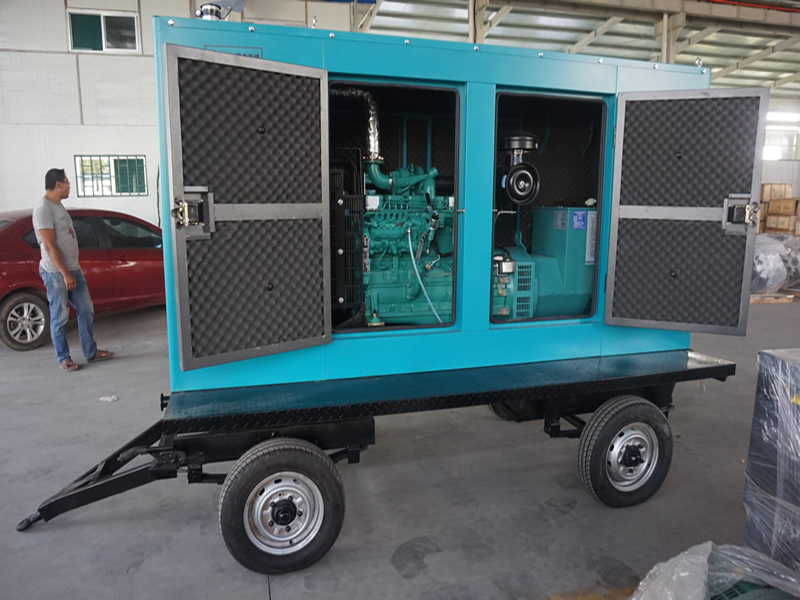

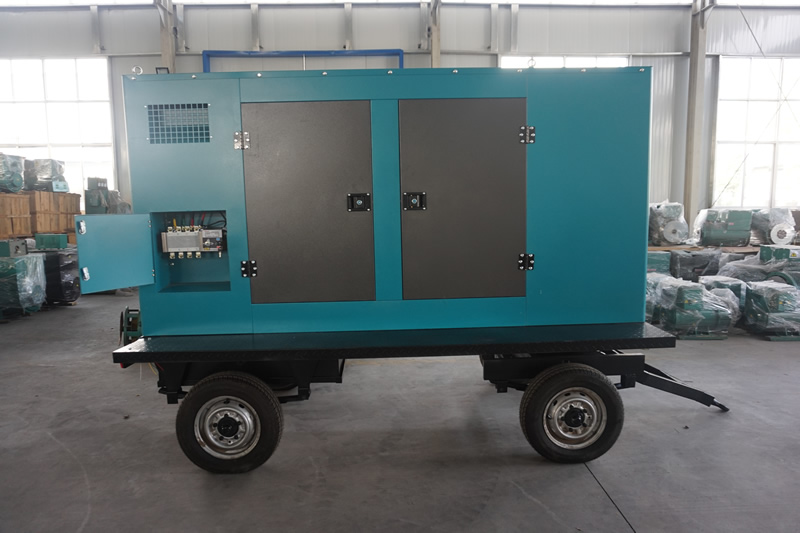

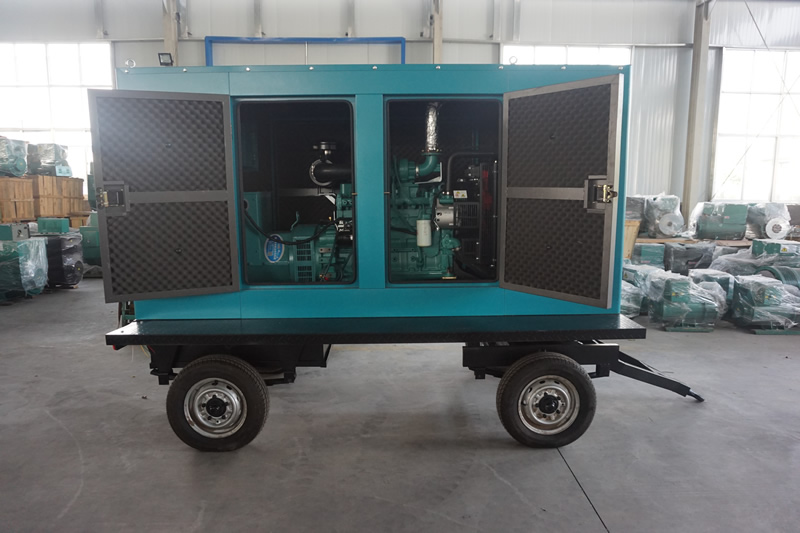

東風康明斯100KW移動拖車電站






康明斯系列柴油發電機組是采用中美合資B/N/K系列發動機為引擎，其可靠性、經濟性一直以來贏得部隊、工程、工礦企業的信賴?？得魉构緞?chuàng)建于1919年2月，總部設在美國印第安納州哥倫布市，康明斯在全球190多個國家和地區，500多加分銷機構，服務網點遍布世界各地，為客戶提供了可以信賴的服務保障。作為中國發動機行業最大的外國投資商，康明斯在中國擁有東風康明斯發動機有限公司（生產B/C/L系列）和重慶康明斯發動機有限公司（生產M/N/K系列）等制造企業。

Cummins diesel generator set is a sino-us joint B/N/K series engine, whose reliability and economy have always won the trust of the army, engineering and mining enterprises. Cummins company was established in February 1919, is headquartered in Columbus, indiana (USA), cummins in more than 190 countries and regions, 500 more distributors, service outlets all over the world, providing customers with reliable service. As engine industry's biggest foreign investors in China, cummins in China with dongfeng cummins engine co., LTD (produce B/C/L series) and chongqing cummins engine co., LTD. (M/N/K series), and other manufacturing enterprises.

機組型號輸出功率KW輸出功率KVA電流A柴油機型號缸數缸徑*行程mm潤滑油容量L油耗g/kw.g機組外形尺寸L×W×H機組重量kg
FM20GF2025364B3.9-G24102*120112081560*710*1080700
FM24GF243043.24B3.9-G24102*120112081620*710*1100710
FM30GF3037.5544BT3.9-G24102*120112081700*710*1110800
FM40GF4050724BTA3.9-G24102*120112101800*800*1200920
FM50GF5062.5904BTA3.9-G24102*120112101800*800*1200950
FM64GF6480115.24BTA3.9-G114102*120112101850*800*12001000
FM80GF801001446BT5.9-G26102*120162102200*800*12001250
FM100GF1001251806BTA5.9-G26102*120202072200*800*12001300
FM120GF1201502166BTAA5.9-G26102*120242072250*800*12001350
FM132GF132165237.56BTAA5.9-G126102*120242072300*820*13301350
FM150GF150187.52706CTA8.3-G26114*135242072300*820*13001600
FM180GF1802253246CTAA8.3-G26114*135242072500*1050*14801700
FM200GF2002503606LTAA8.9-G26114*145282072500*1050*15002000
FM220GF2202753966LTAA8.9-G36114*145282032500*1050*15002000
FM320GF3204005766ZTAA13-G36114*145282023200*1360*18003000
FM400GF4005007206ZTAA13-G46114*145282023200*1360*18003000
FM400GF400500720QSZ13-G26130*163282013300*1360*18003100
FM450GF450562.5810QSZ13-G36130*163282013300*1360*18003100
1.以上技術參數轉速為1500RPM，頻率50HZ，額定電壓400/230V，功率因數0.8，接線方式為三相四線。
2.發電機可以根據客戶需求，選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。
3.60HZ發電機組可以根據客戶的特殊需要定制。
4.本參數表僅供參考，如有更改恕不另行通知。
標準配置 Standard equipment：
發動機 diesel engine
發電機 alternator
散熱器 water cooled radiator
工業消音器 、波紋管 industrial silencer and flexible exhaust hose
啟動免維護蓄電池及蓄電池
電池連接線 maintenance-free lead-acid starting batteries and battery connect wires
輸出斷路器 output circuit breaker
智能控制屏 digital control panel
鋼式底架 steel base frame
可選配置 Optional equipment
低噪音靜音機箱 Low noise silent case
四輪移動拖車電站 Four-wheel mobile trailer power station
自啟動、自轉換
開關柜 Self - start, self - conversion switch cabinet
自動并機控制系統 automatic parallel operation control system
電熱式水套加熱器 electrothermal water jacket heater
移動發電機組 Mobile generating set
移動柴油發電機組有多種結構和功能，有手推式、三輪、四輪、汽車電站、拖車電站、移動低噪音。移動集裝箱電站等。該系統是我公司參照多國家移動電站結構，自行設計和生產的，具有良好的操作性能和安全性能。移動電站車架采用槽梁焊接成框架結構，節點選擇合理、強度高、剛性好，同時裝有鋼板彈簧懸架結構，拖車采用高度可調節插銷式牽引架，適用于各種高度牽引車，采用圓形鋼管焊接直通式車軸，結構緊湊，安全可靠。
The mobile diesel generator set has many structures and functions,including push type, three wheel, four wheel, automobile power station, trailer power station and mobile low noise. Mobile container power station, etc. This system is designed and produced by our company according to the structure of multi-national mobile power station, and has good operation performance and safety performance. Mobile power station frame with groove beam welded frame structure, node selection is reasonable, high strength, good rigidity, equipped with leaf spring suspension structure at the same time, the trailer adopts height adjustable bolt type drawing frame, suitable for all kinds of tractor, USES the circular steel tube welding cut-through axle, compact structure, safe and reliable.

1、牽引：采用活動式掛鉤，360°轉盤、轉向靈活、確保行駛中的安全。
Traction: the activity type, 360 ° rotating disc, flexible steering, to ensure the safety of driving.

2、制動：同時具有可靠的手搖式剎車系統和氣剎接口，確保行駛中的安全性。
Braking: it also has reliable hand brake system and air brake interface to ensure the safety of driving.

3、支撐：為保證電源車操作時的穩定性，可選配4只機械或液壓支撐裝置。
Support: in order to ensure the stability of power vehicle operation, 4 mechanical or hydraulic support devices can be selected.

4、門窗：前部有通風窗，后部有對開大門，兩側有門可供操作人員操作。
Doors and Windows: there is a ventilation window in the front and a door in the back. There are doors on both sides for operators to operate.

5、照明：車廂內有吸頂防爆燈，右側有工作臺，并配有工作臺燈，方便工作人員操作。
Lighting: there is an anti-explosion lamp on the top of the car and a  working table on the right.

6、防音：電源車的車箱、車內等全部用雙層裝飾，并裝有吸音板消音，排氣管用保溫棉包裹，噪音最低可控制在72db以內。
Sound proof: the car box and the car of the power car are all decorated with double layers and equipped with sound absorbing board. The exhaust pipe is wrapped with insulation cotton, and the noise can be controlled within 72db at the minimum.

7、外部美觀：油漆采用高分子聚氨酯油漆，顏色可有業主自定，排氣管采用上排氣，確保美觀。
Exterior beautiful: paint USES high polymer polyurethane paint, color can have owner from decide, exhaust pipe USES on exhaust, ensure beautiful.

8、尺寸：車箱尺寸根據規格大小而定，操作人員可在四周行走，便于操作和維護。
Size: the size of the car box is determined according to the size of the specification. The operator can walk around, which is convenient for operation and maintenance.

9、消防：隨車可選配消防滅火器兩只。
Fire: the accessory optional two fire extinguishers.

東風康明斯100KW移動拖車電站 2018-9-30 本文被閱讀 3580 次
